Product Details:
Payment & Shipping Terms:
|
Color: | Sliver/Goden/Black | Displacement: | 107CC |
---|---|---|---|
Stroke: | Four Strokes | Gear: | 4 Gears |
Fuel: | Gasoline | Starting Method: | Kick + Electric Start |
Highlight: | single cylinder motorcycle engine,air cooled motorcycle engine |

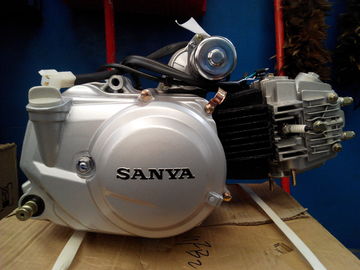

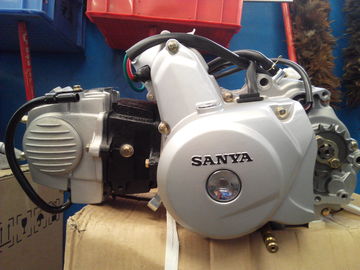

N110 Fengchi Motorcycle Engine Four Stroke, Air-Cool, Single Cylinder 4 Gears
N110 Engine Parameter | ||
NO. | Item | Parameter |
1 | Model | single cylinder,4-stroke,air cool, diagonal type |
2 | Max net power and the corresponding rotating speed | 5.0KW,8000±400r/min |
3 | Calibration power and the corresponding speed | 4.7KW,7500±375r/min |
4 | Max torque and the corresponding speed | 7.0N·m,6000±300r/min |
5 | Minimum fuel consumption rate | 367g/KW·h |
6 | Minimum no-load stable speed (idle) | 1400±100r/min |
7 | Compression ratio | 9.1:1 |
8 | Cylinder diameter × piston stroke | 52.4mm×49.5mm |
9 | Cylinder working volume | 107ml |
10 | Spark advance angle | 13°±2°~28°±2° |
11 | The turning of output shaft | Anticlockwise |
12 | Ignition method | C·D·I |
13 | Lubrication method | Pressure and splash lubrication at the same time |
14 | Valve clearance (20 ± 10 ° C) | Intake valve:0.03~0.05mm |
Exhaust valve:0.03~0.05mm | ||
15 | Idle emission | CO≤2.0% |
16 | HC≤250ppm | |
17 | Clutch model | Multi-disk wet clutch |
18 | Transmission model | Four gear |
19 | Starting method | Kick + Electric start |
20 | Carburetor | PZ19 |
21 | Magnetic motor | inner-rotor flywheel magneto |
22 | Spark plug | A7RC |
23 | Oil bump | Rotor type |
24 | Starting motor | 12 V DC |
25 | Gasoline | RQ above 90# unleaded gasoline |
26 | Lubrication oil type | SAE 15W/40 SE |
27 | Lubricating oil consumption rate | 8 g/kw·h |
28 | Filling amount of lubrication | 0.9L |
29 | Dimensions (Length/Weight/Height) | 430mm×310mm×260mm |
30 | Net weight | 23kg |
Description:
We Sanya believes only constant innovation can make the company successful in more competitive motorcycle industry, so our company invests huge fund to recruit R&D employees, and builds up a first-class R&D team in domestic, learns and adopts actively advance R&D technology from foreign countries.
Quality is the soul of commercial product, the excellent inspection system is the absolutely necessarily procedure which ensures good quality to the product. SANYA owns the advanced inspection system, each part is produced carefully, each procedure is controlled strictly, and the quality of finished products is 100% according to international level.
We export many countries; nearly 65 countries have our SANYA motorcycles. We won many honors from our domestic and foreign country. We received many good feedbacks from our domestic and foreign customers. Warmly welcome to our company.
